In this post, you will learn how to take apart an HP Pavilion X360 notebook. You will know how to remove, replace the hard drive, battery, keyboard, RAM module, cooling fan, speakers, wireless card, palm rest and motherboard of HP Pavilion X360 notebook.
Join us on the social network! Follow us on Facebook for all the latest repair news.
Remove all visible screws on the bottom case.
RAM is on board, but can be upgraded to 16g max (two 8gb sticks in the two slots on board) You need to do major disassembly. Will void warranty if you break something in the process of upgrade Page 1: Get the exact same configuration speed and voltage module as given in manual and each other to guarantee compatibility. Shop HP Pavilion x360 2-in-1 14' Touch-Screen Laptop Intel Core i5 8GB Memory 256GB SSD Warm Gold at Best Buy. Find low everyday prices and buy online for delivery or in-store pick-up. Price Match Guarantee. The right side of the HP Pavilion x360 Convertible 14 (dw0097nr) includes a port for the barrel charger, HDMI 2.0, USB-A, standard USB-C (not Thunderbolt), a full-sized SD card slot, and the SIM. HP Pavilion x360 - 13-s121ca how many ram slots 08:17 AM I read on a memory site dealer that HP Pavilion x360 laptops provide 2 slots for ram sticks so I could install a 2x4Gb kit. But Piriform Speccy software gives a total memory slots of one. Storage-wise, you get one M.2 NVMe slot and one 2.5-inch SATA slot. In terms of cooling, we have two heat pipes, managing the temperature of both the CPU and the GPU. Check out all HP Pavilion x360 14 (14-df1000) prices and configurations in our Specs System or read more in our In-Depth review.
Remove the rubber mat with a screwdriver. You can see the hidden screws.
Unscrew all the screws.
Hp Pavilion X360 Slot Ram Specs
Pry up and remove the bottom case.
Be careful, the USB board cable still connecting to the motherboard.

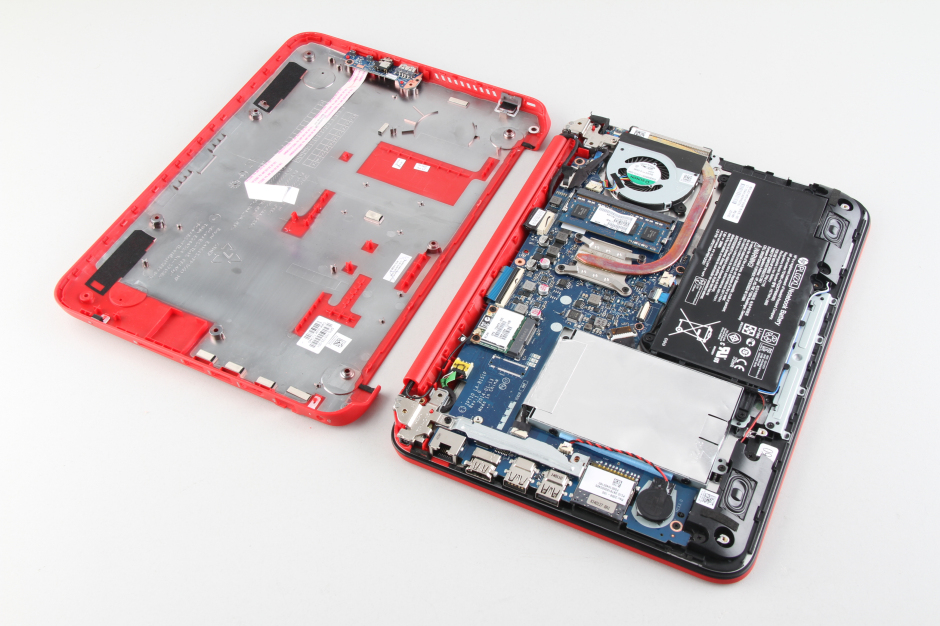

When the bottom case removed, you can get access to the internal components, including battery, hard drive, speaker, wireless card, CMOS battery, RAM, heat sink, cooling fan and motherboard.
Remove all screws securing the battery.
Disconnect the battery connector from the motherboard. You can remove the battery.
The laptop comes with a 7.6V, 29wh Li-ion battery. HP model: 751681-421.
Remove all screws securing the hard drive and disconnect the SATA cable from the motherboard.
Hp Pavilion X360 14 Ram Slot
HP Pavilion X360 features a Western Digital 500GB hard drive, HP model: 726835-0001.
Remove four screws securing the speaker modules (left and right).
Disconnect two speaker cables from the motherboard.
You can remove the speaker modules.
Here’s speaker module.
Separate the clips.
The memory module will pop up.
It comes with an SK Hynix 4GB DDR3L-1600MHz RAM, HP P/N: 591740-005.
Remove two screws and unplug two wireless cables, you can remove the wireless card.
HP Pavilion X360 wireless card, HP P/N: 733475-005.
Remove all the screws securing the cooling fan and heat sink.
The cooling fan coming from SUNON
In the next step, I will remove the motherboard.
Remove all cables connecting to the motherboard.
Remove all screws securing the motherboard.
HP Pavilion X360 motherboard
Now you can access the touchpad and keyboard.
In this post, you will learn how to take apart an HP Pavilion X360 notebook. You will know how to remove, replace the hard drive, battery, keyboard, RAM module, cooling fan, speakers, wireless card, palm rest and motherboard of HP Pavilion X360 notebook.
Join us on the social network! Follow us on Facebook for all the latest repair news.
Remove all visible screws on the bottom case.
Remove the rubber mat with a screwdriver. You can see the hidden screws.
Unscrew all the screws.
Pry up and remove the bottom case.
Be careful, the USB board cable still connecting to the motherboard.
When the bottom case removed, you can get access to the internal components, including battery, hard drive, speaker, wireless card, CMOS battery, RAM, heat sink, cooling fan and motherboard.
Remove all screws securing the battery.
Disconnect the battery connector from the motherboard. You can remove the battery.
The laptop comes with a 7.6V, 29wh Li-ion battery. HP model: 751681-421.
Remove all screws securing the hard drive and disconnect the SATA cable from the motherboard.
HP Pavilion X360 features a Western Digital 500GB hard drive, HP model: 726835-0001.
Remove four screws securing the speaker modules (left and right).
Disconnect two speaker cables from the motherboard.
You can remove the speaker modules.
Here’s speaker module.
Hp Pavilion X360 13-u131tu Ram Slots
Separate the clips.
The memory module will pop up.
It comes with an SK Hynix 4GB DDR3L-1600MHz RAM, HP P/N: 591740-005.
Remove two screws and unplug two wireless cables, you can remove the wireless card.
Hp Pavilion X360 Slot Ram Upgrade
HP Pavilion X360 wireless card, HP P/N: 733475-005.
Remove all the screws securing the cooling fan and heat sink.
The cooling fan coming from SUNON
In the next step, I will remove the motherboard.
Remove all cables connecting to the motherboard.
Remove all screws securing the motherboard.
Hp Pavilion X360 Convertible Ram Slots
HP Pavilion X360 motherboard
Hp Pavilion 11 X360 Ram Slots
Now you can access the touchpad and keyboard.
